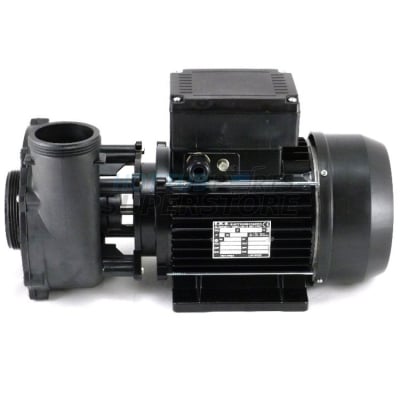

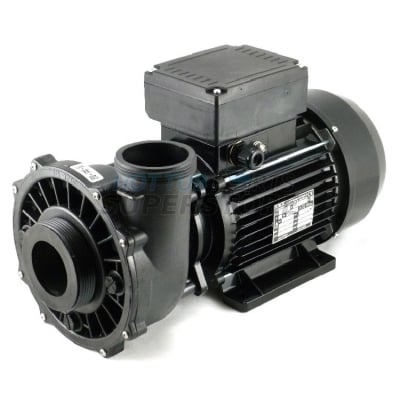

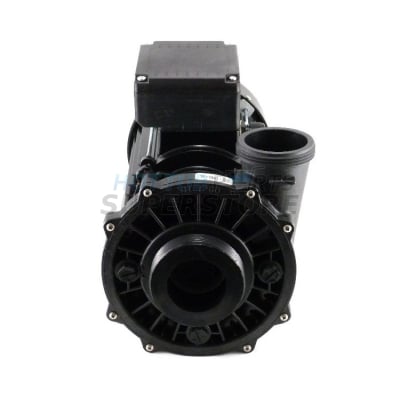

Waterway 2.5hp 2Speed 56F Executive Pump 2.5"x 2"

2.5hp 2 Speed 56F Waterway Hot Tub Pump (2.5"x 2")
  • 2.5hp 2 Speed 56F Waterway Hot Tub Pump (2.5"x 2")
  • Waterway_2.5hp_2Spd_56F_2.5"Suction
  • Waterway_2.5hp_2Spd_56F_2.5"Suction

Part Number: PF-25-2N22X25

Now at

Old price: £377.53


(Including VAT)

Online Exclusive, Save: £41.53 (11%)
In stock, immediate despatch

Waterway 2.5hp 2-Speed 56F Executive Pump 2.5"X 2"

Waterway European 2.5hp dual-speed Executive Euro pump designed specifically for hot tubs & spas.

This is the most powerful pump that Waterway produces as it has a 5hp impeller inside the wet end. In our opinion, if you have a sufficient power supply to your spa that can handle the extra amps drawn from this pump when on high speed then this would be a great replacement for any 2hp Waterway pump with a 2.5 suction.

This pumps Italian manufactured 56 Frame EMG motor is recommended by Waterway for the European market, it has a rear cooling fan with finned motor design to dissipate heat and provide cooler running temperatures.

Please note, this is the less common model with the larger 2.5" suction on the wet end.


Type of Product: Hot Tub & Spa Pump

Manufacturer: Waterway Plastics

Part Number: PF-25-2N22X25

Model: 2.5HP Executive Euro 56

Motor: 56 Frame 2 Speed

Power: 230v 50Hz

Amps: Low 2.0 / High 10.9

Motor kW: Low 0.45 / High 2.36

HP: Low 0.74 / High 3.54

Impellor: 5HP Industry Standard

RPM: 1440 / 2830

Capacitor: 16uf & 40uf


Length: 430mm x Height: 240mm x Width 205mm.


Plumbing: Wet end has a 2.5" suction and 2" discharge (Outside diameter across the threads are 93mm & 78mm)

Electrical: Supplied without cable, requires a 4 core cable that can be swapped over from your old pump.

Ideal Replacement For

These powerful 2.5hp 56 frame pumps can only work in place of another Waterway pump or a pump that has a 2.5" Waterway wet end, Waterway are the only manufacturer that produces this larger suction on some of their wet ends.

Common With Spa Brands

Can be found on spa brands such as Beachcomber, Aegean, Canadian Spa, Spaform, Hot Tubs Direct, Catalina, Hydropool, Touch Spas, Southwest Spas, Hotspring and many more.

Additional Info

You may find that your old pump has a smooth motor body design, these are imported American motors and can be replaced using this European model from Waterway. Check the dimensions of the space from where your old pump came out of as these European models are slightly taller than the smooth body models due to having their capacitors positioned on top of the motor.
